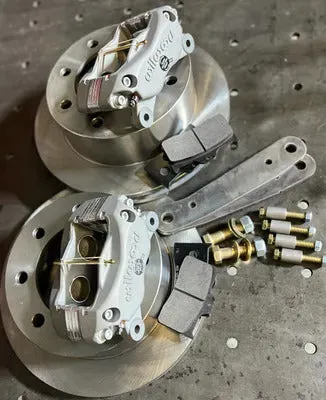

Ford Superduty F450/550 Lightweight brake kit. High Pinion Dana 60.   55LB WEIGHT SAVINGS

This kit is designed for those running the Ford Super 60 or for those that have built custom axles and are running the Ford F450/F550 Kuckles and Inner C's

This kit was designed to provide excellent braking for your off road vehicle. Our brake kit utilizes high quality parts as well as saving weight. The 4 piston Wilwood caliper offer superior strength with innovative design which is combined with proven performance features from Wilwood's earlier designs.


Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.

Our kit is 100% bolt in and requires no additional parts. This kit will work with the Ford F450/550 knuckles

We offer -3AN-1/8NPT  90 fittings that work well in between the mounting bracket and the caliper.

For those running Nylon/plastic brake hose using stright fittings, you can simply drill a small hole for the hose to pass through the caliper bracket.



For install info check out our youtube video @

For tips bleeding 4 piston Wilwood calipers @



RECOMENDED FOR OFFROAD USE ONLY
